ATFD (AGITATED THIN FILM DRYER)

Overview

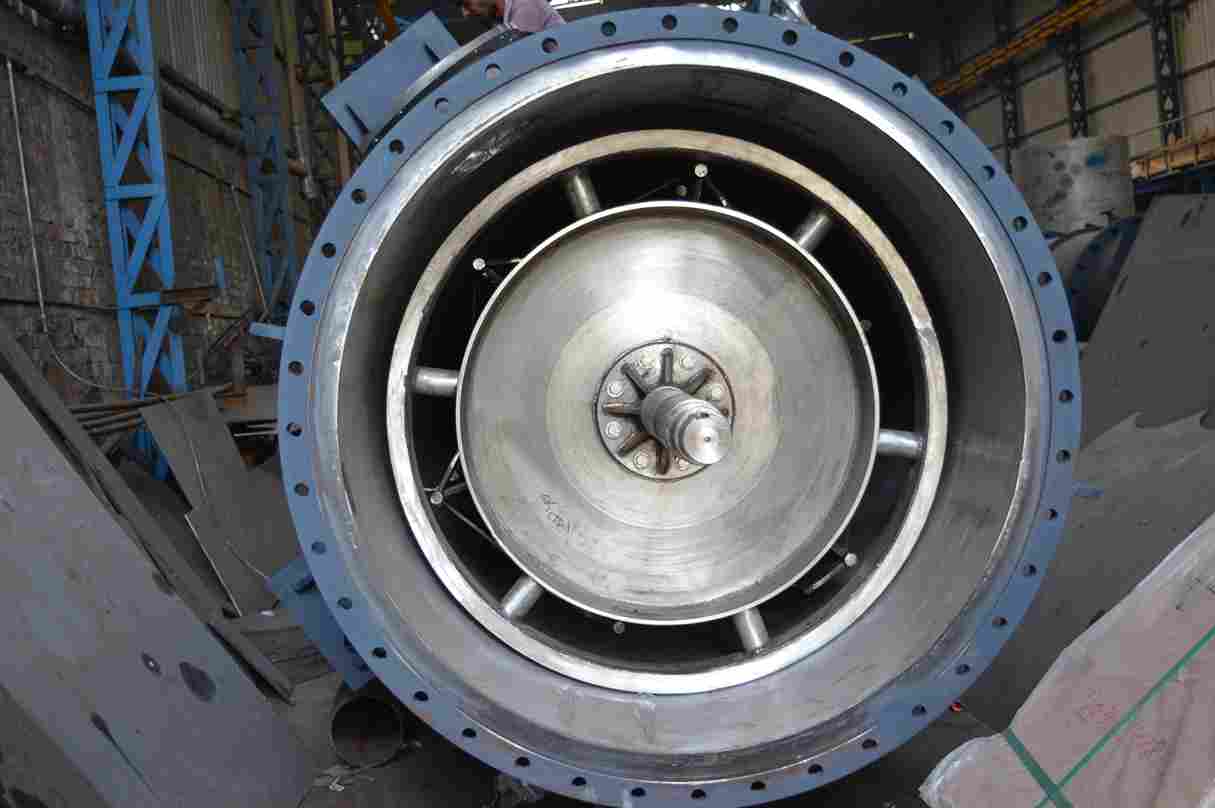

Rototech Atfd Are Used To Concentrate, Refine Or Recover A Valuable Product Through Distillation Or Similar Thermal Separation Process. The Typical Agitated Thin Film Dryers Consists Of A Tubular Heat Transfer Area With An External Heating Jacket And Fast Revolving Inner Rotor With Flexible Or Rigid Wiper Elements.

The feed is distributed by the rotor and its wipers evenly over the heating surface and forming a thin film of uniform thickness and heat will transfer in to thin film, Feed progressively passes through different phases like Liquid Slurry, Past Wet powder and finally powder of desired dryness.

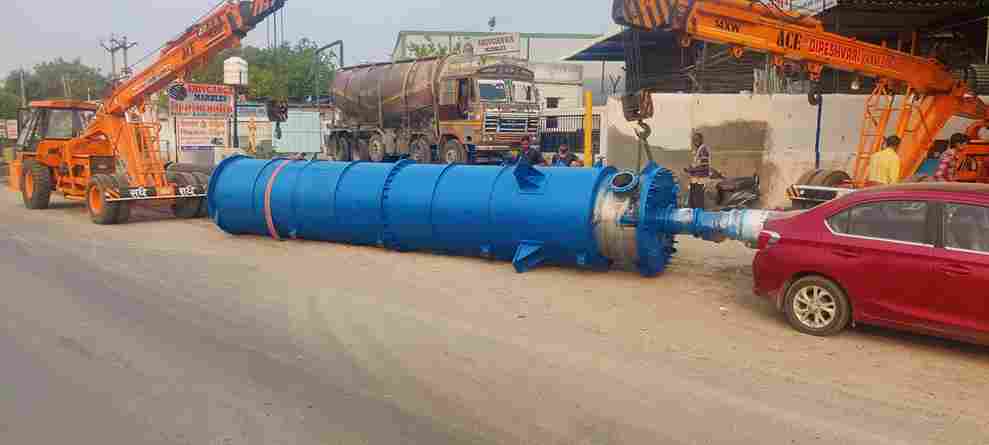

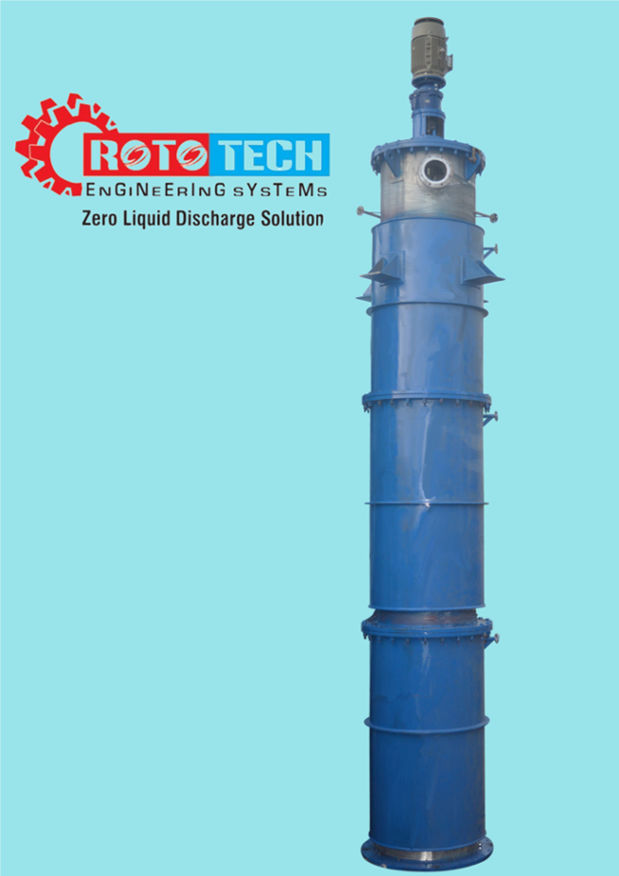

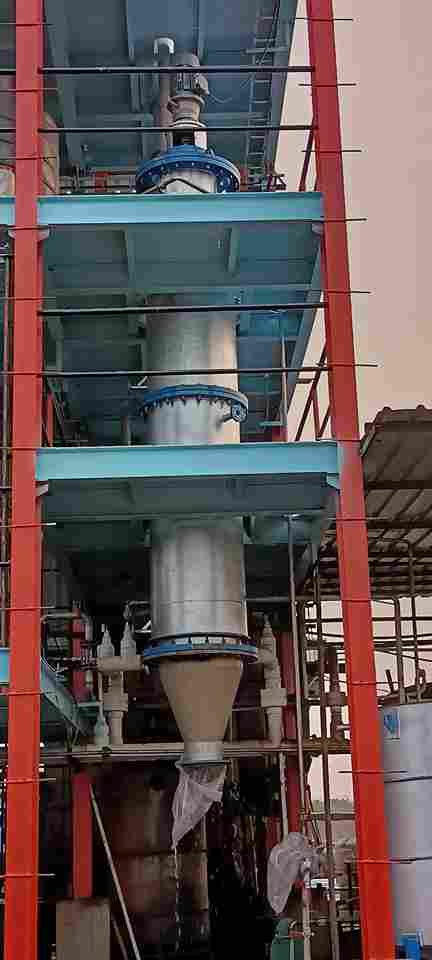

PRODUCT IMAGES

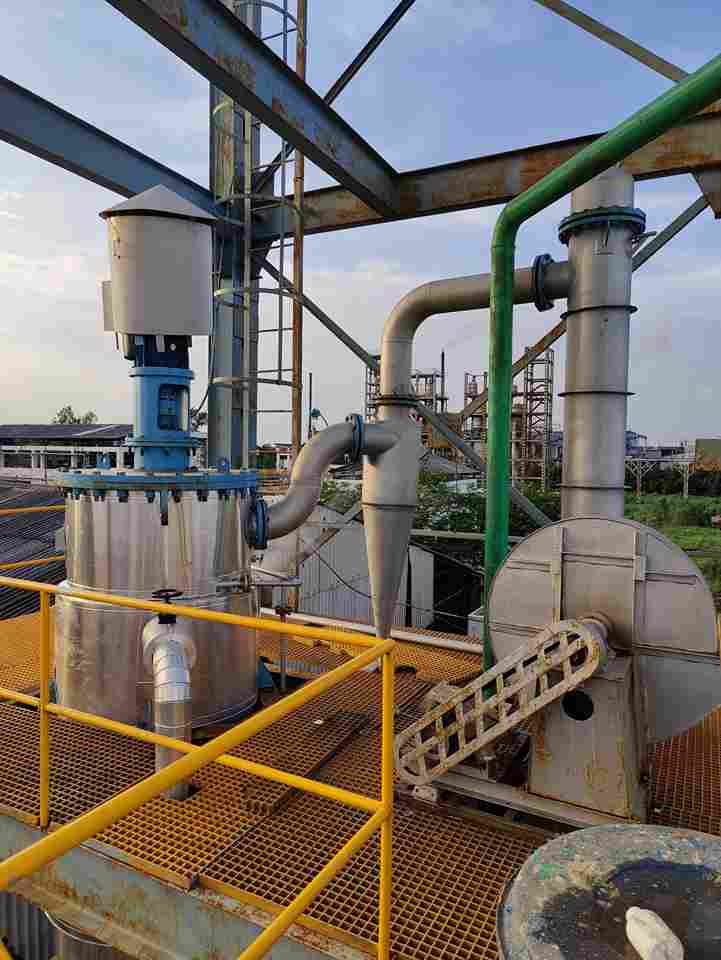

The vapors produced and flow counter current to the film and pass through cyclone separator, further these vapors condensed in to indirect contact condenser The powder gets collected in a receiver at the bottom.
